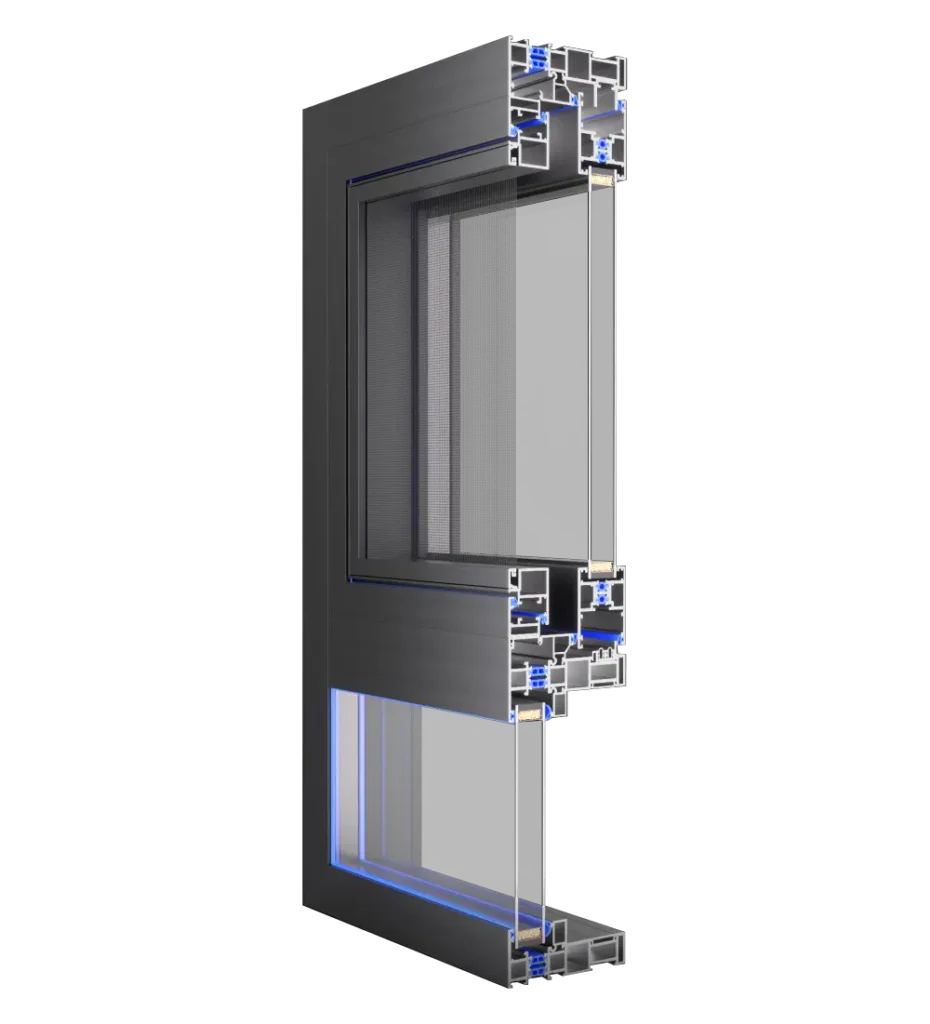

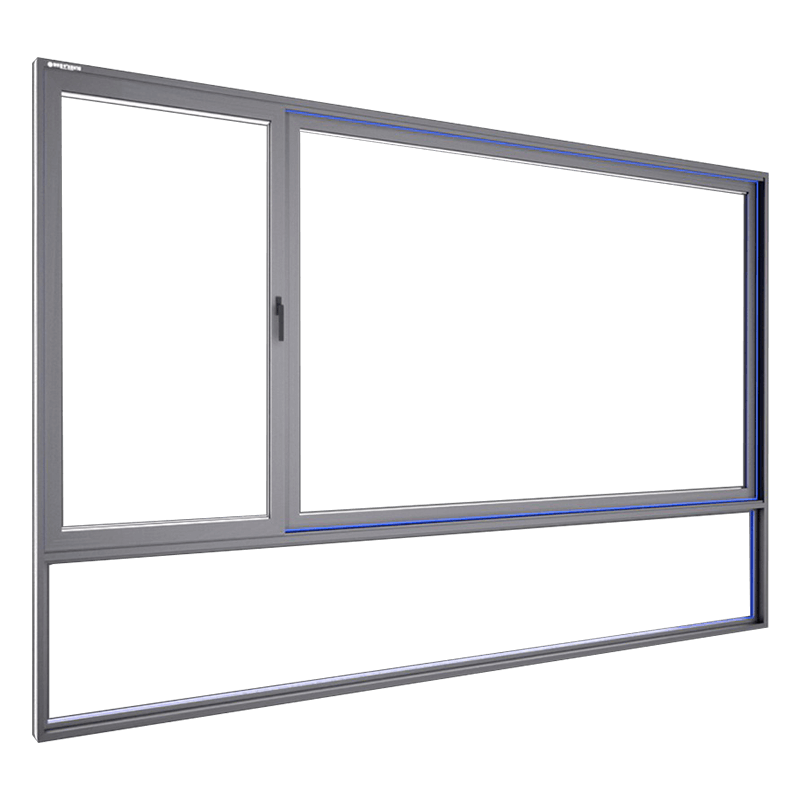

• Auratech+ 120 Side Compression Airtight Sliding Window

    Product Parameters

    Glass Configuration
    5+20A+5 Argon-Filled Insulated Glass + Integrated Bent Aluminum Spacer Process
    Optional configuration
    Energy saving Low-E glass coatings
    Lower Rail Wall Thickness (mm)Sash Wall Thickness (mm)
    2.01.8
    Sash (mm)Frame (mm)
    50*6526*120
    Hardware configurationProfile technology
    HOPPE Side Compression System Hardware6063-T5 Extruded Aluminum Profile
    Request a Quote
    Energy Saving Coefficient

    U≤2.0-2.5 (W/M2-K)

    Class 4

    Sound Insulation

    35-45(DB)

    Class 8

    Thermal Insulation
    Air Tightness

    Q≤0.5 (M3/M-H)

    Class 8

    Waterproofness

    700(PA)

    Class 9

    Wind Resistance

    5.0(KPA)

    Class 10

    Security / Safety

    • Product Features

    • Foshan Zhongjian Aluminum 6063 virgin aluminum
    • 2.0mm wall thickness, exceeding national standards, strong wind pressure resistance
    • Stainless steel silent pulleys
    • PA66 national standard nylon insulation strips with multiple seals
    • Effective insulation and sound reduction
    • Double-track, double-row wheel design for stable and smooth sliding
    • Sliding sash with all-around locking for stable and secure performance
    • Sliding opening mechanism saves space
    • Dual-row customized rollers for ultra-smooth and silent sliding
    • Wide-opening design maximizes ventilation and panoramic views
    • HOPPE side compression system hardware, outperforming casement windows

    Open the Way

    • Single sliding panel (full-width)
    • Double-hung opening (left & right)

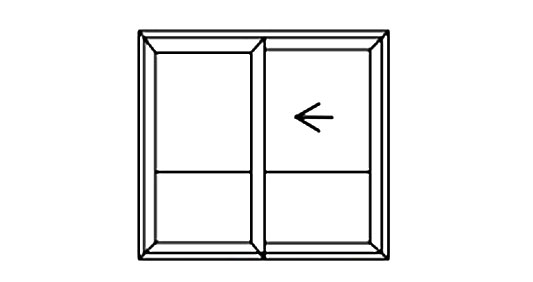

    • Bottom fixed with lower operable

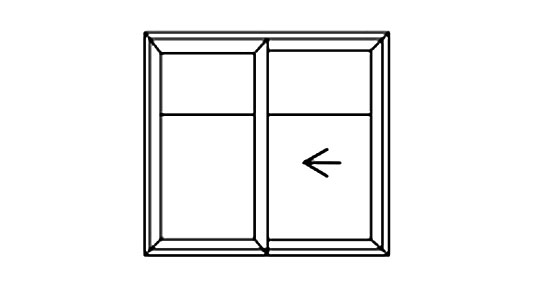

    • Top fixed with lower operable
