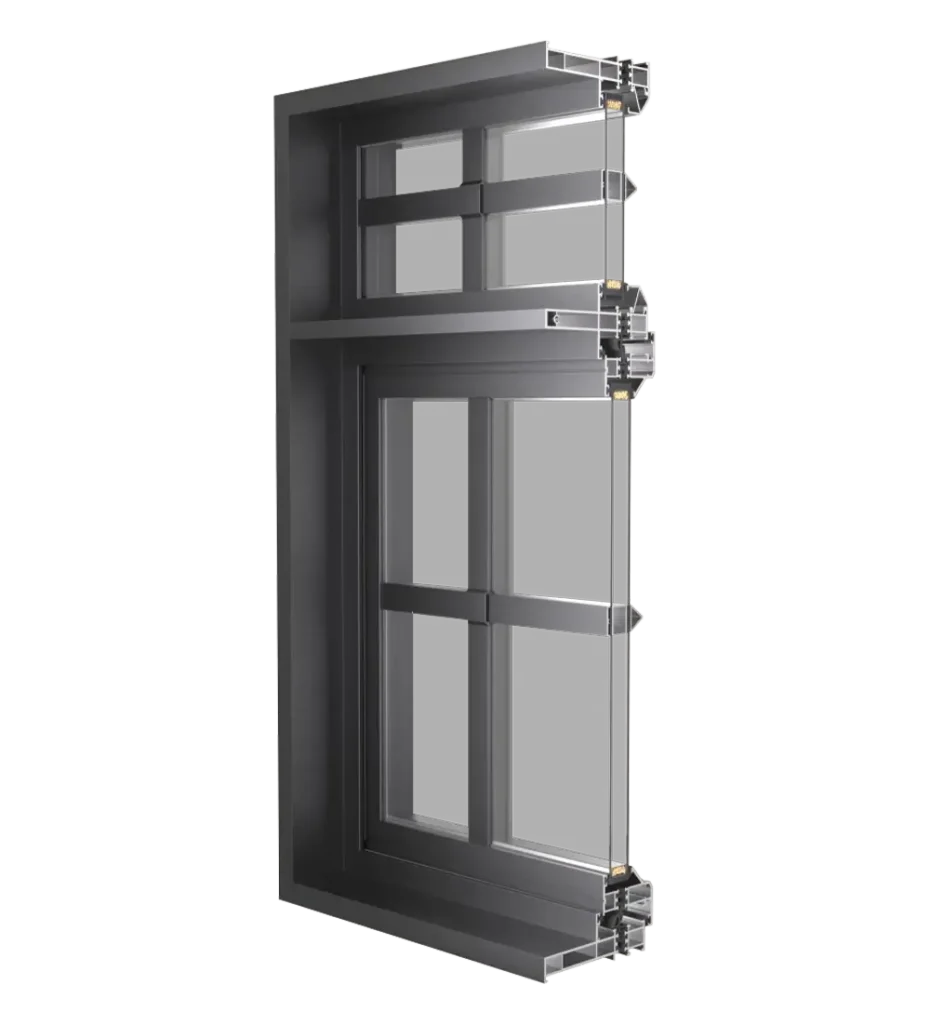

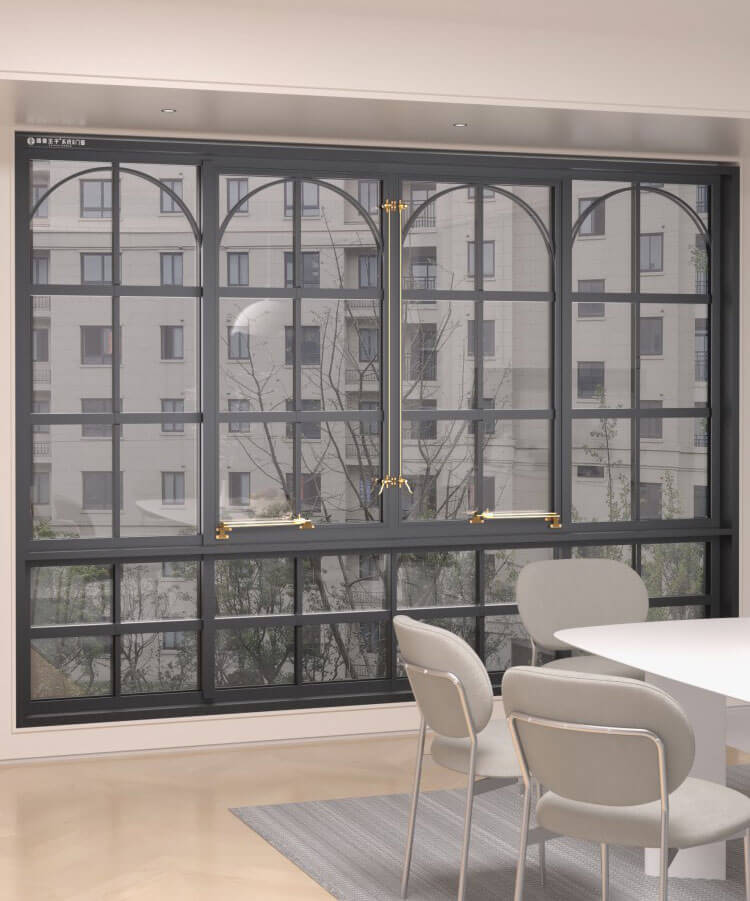

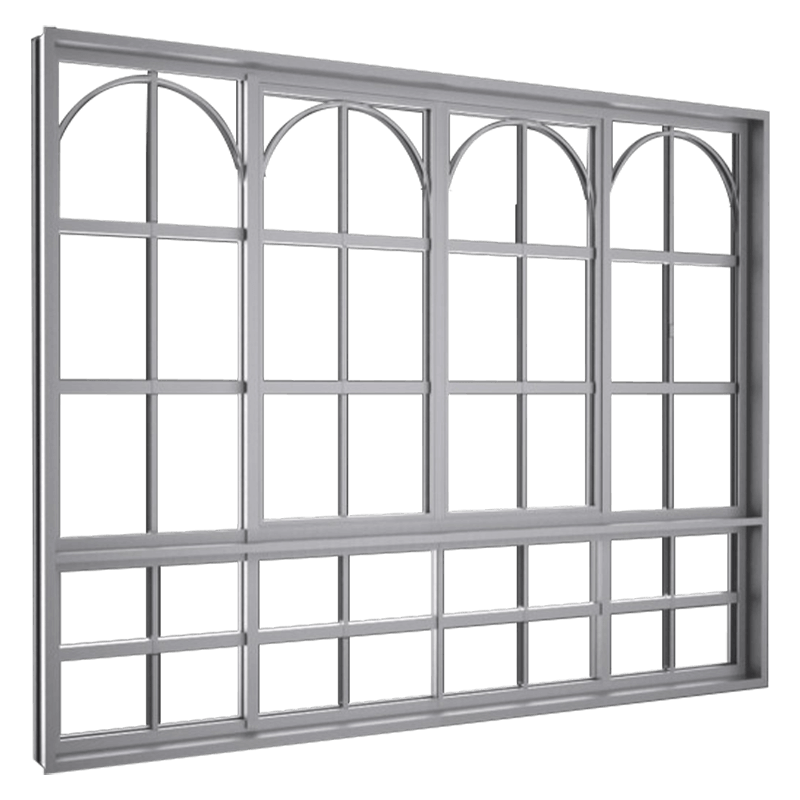

• AuraClassic 120 Casement Window

    Product Parameters

    Glass Configuration
    5+15A+5 Argon-Filled Insulated Glass + Integrated Bent Aluminum Spacer Process
    Optional configuration
    Energy saving Low-E glass coatings
    Frame Wall Thickness (mm)Glass Panel Wall Thickness (mm)
    2.02.0
    Creasing‌Drainage System
    Small obliqueFloor Drain Type
    Section Dimensions (mm)Sash Dimensions (mm)
    12052
    Profile technologyHardware Configuration
    6063-T5 Extruded Aluminum ProfilePure Copper Vintage Hardware System
    Request a Quote
    Energy Saving Coefficient

    U≤2.0-2.5 (W/M2-K)

    Class 4

    Sound Insulation

    35-45(DB)

    Class 6

    Thermal Insulation
    Air Tightness

    Q≤0.5 (M3/M-H)

    Class 6

    Waterproofness

    700(PA)

    Class 4

    Wind Resistance

    5.0(KPA)

    Class 8

    Security / Safety

    • Product Features

    • Foshan Zhongjian Aluminum 6063 virgin aluminum
    • 2.0mm wall thickness, new national standard design
    • 5+15A+5 large hollow glass for superior sound and thermal insulation performance

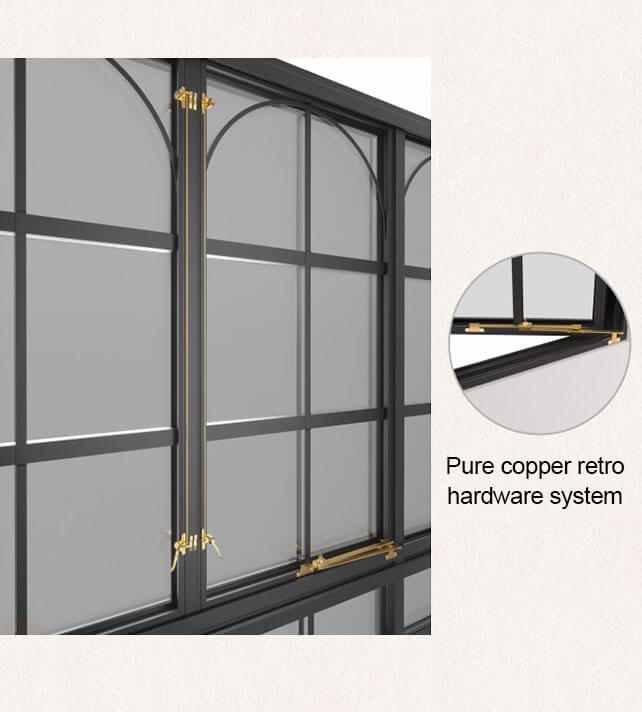

    • Retro pure copper custom hardware system for smooth opening and closing
    • Retro pure copper connecting rod handle for comfort and aesthetics
    • PA66 national standard nylon insulation strip for enhanced performance
    • Cross-section size 120mm, sash size 52mm
    • Concealed drainage system for smooth drainage

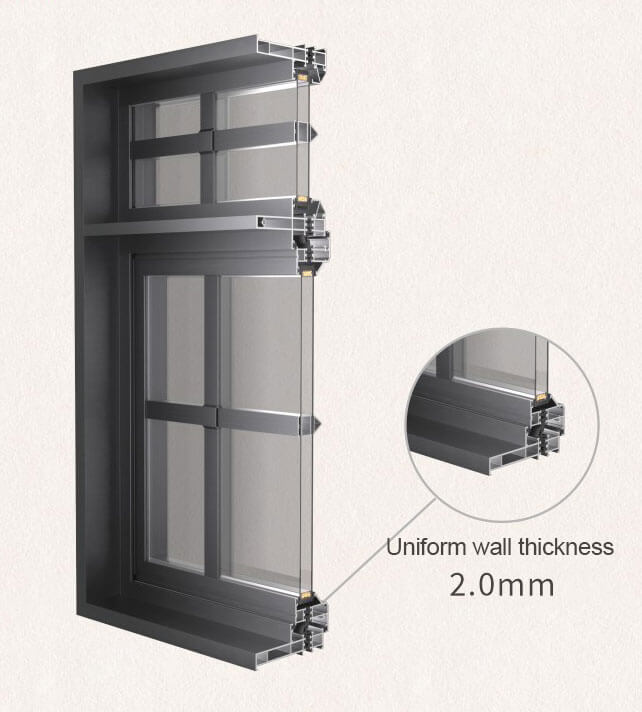

    • Uniform Wall Thickness 2.0mm (Exceeds National Standards)
    • ‌Pure Vintage Hardware System (Fine Texture, Smooth Operation)

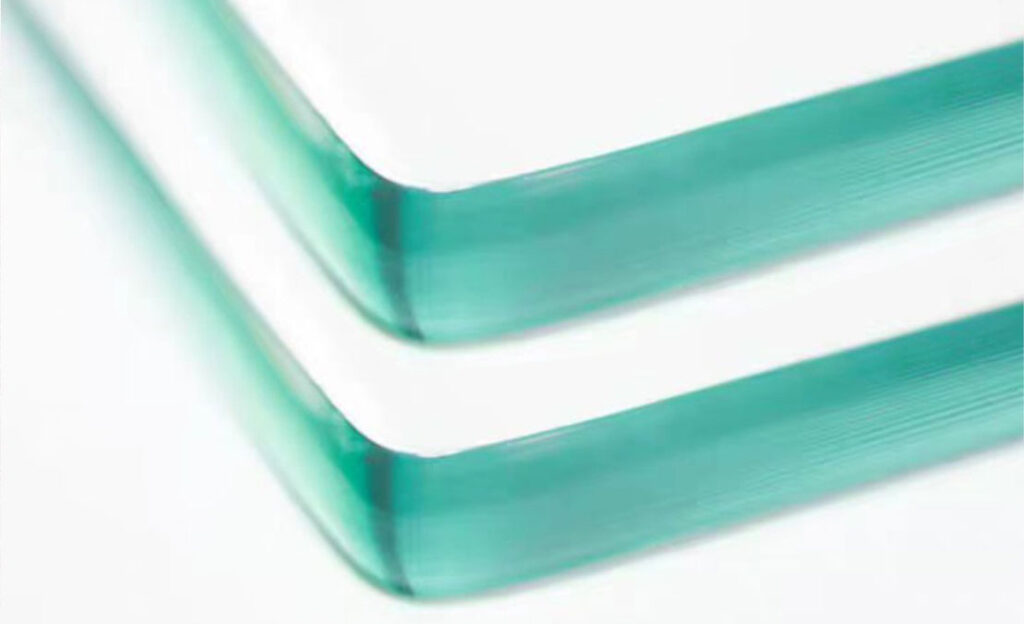

    Standard double-layer hollow glass, significantly better sound and heat insulation performance.
    Transparent double-layer glass with 10-15 times stronger impact resistance than ordinary glass, ensuring safety.

    • High Strength
    • Easy to Clean
    • High Temperature
    • Safer to Use

    Multiple Artistic Glass Options Available

    Can be matched with a variety of art glass to easily adapt to various decoration styles

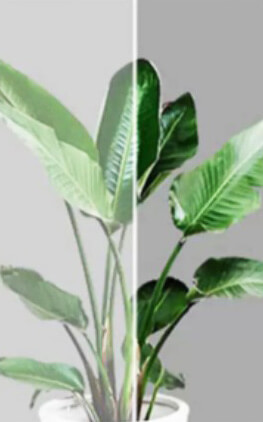

  • Ultra-clear transparent glass

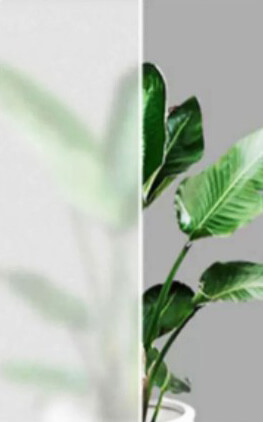

  • Ultra-clear frosted glass

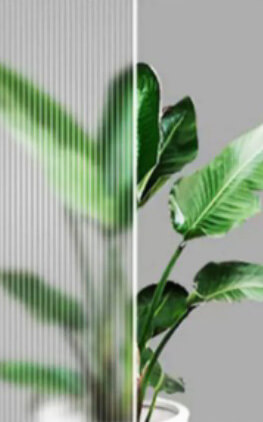

  • Ultra-clear ribbed glass‌

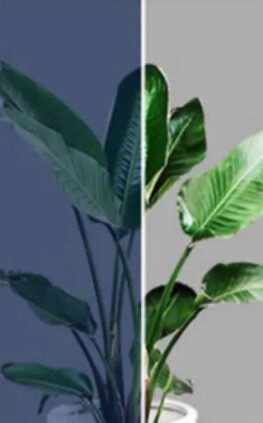

  • Grey glass

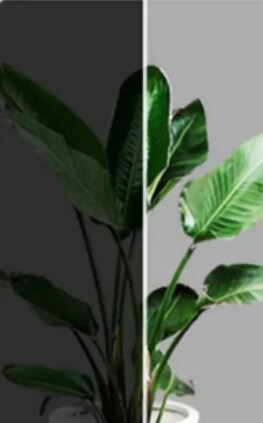

  • Black glass

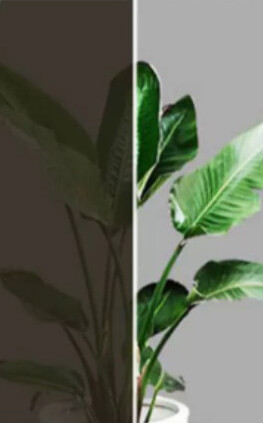

  • Brown glass

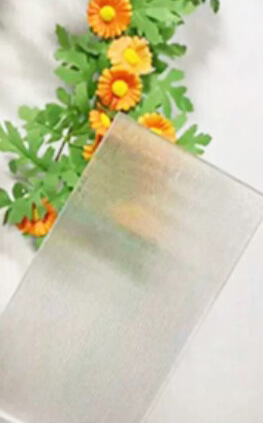

  • Ultra-clear tiny ribbed glass

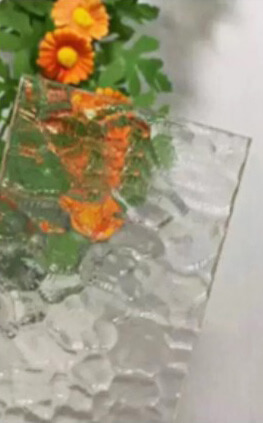

  • Ultra-clear ripple glass

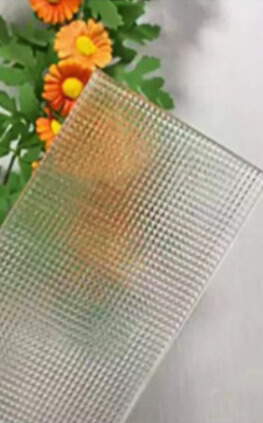

  • Ultra-clear crystal grid glass
