• AuraView 120 Thermal Break Casement Window (Z/S)

    Product Parameters

    Glass Configuration
    5+30A+5 Argon-Filled Insulated Glass + Integrated Bent Aluminum Spacer Process
    Optional configuration
    Energy saving Low-E glass coatings
    Z Type – Profile Wall ThicknessS Type – Profile Wall Thickness
    Overall frame 2.0mmOuter frame 3.0mm
    Glazing Bead Profile‌Drainage System
    Standard Horizontal-Square & Vertical-Slant DesignFloor Drain Type
    Section Dimensions (mm)Sash Dimensions (mm)
    12075
    Request a Quote
    Energy Saving Coefficient

    U≤2.0-2.5 (W/M2-K)

    Class 6

    Sound Insulation

    35-45(DB)

    Class 5

    Thermal Insulation
    Air Tightness

    Q≤0.5 (M3/M-H)

    Class 6

    Waterproofness

    700(PA)

    Class 7

    Wind Resistance

    5.0(KPA)

    Class 9

    Security / Safety

    • Product Features

    • Foshan Zhongjian Aluminum 6063 primary aluminum
    • Profile wall thickness: 2.0mm

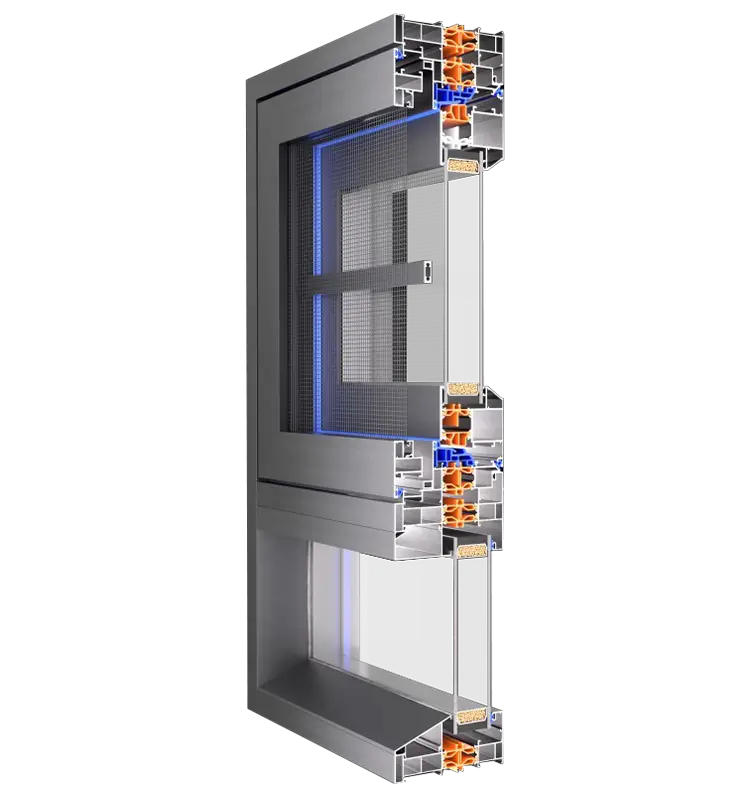

    • Seven-cavity bridge-cutoff structure

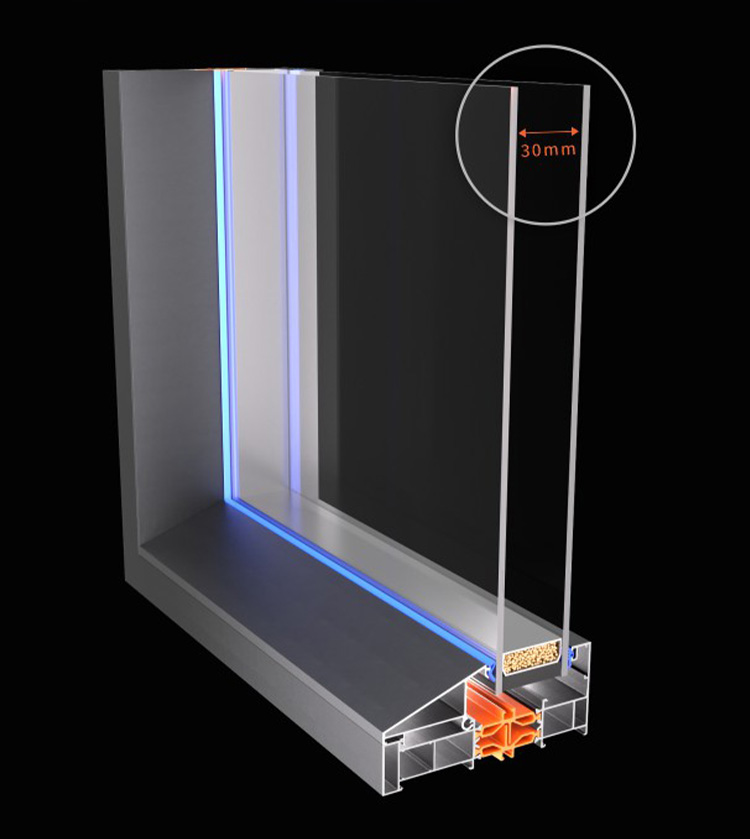

    • 5+30A+5 Argon-Filled Insulated Glass + Integrated Bent Aluminum Spacer Process

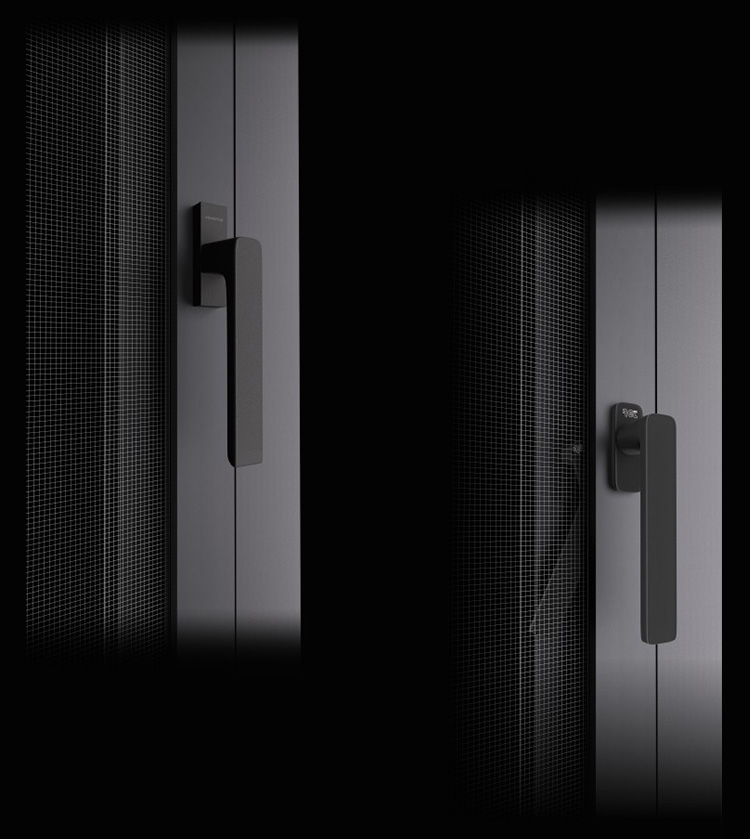

    • The HOPO system hardware ensures smooth opening, closing, and sliding
    • Standard configuration: Argon-filled insulating glass + integrated bent aluminum strip
    • PA66 multi-cavity meat fin insulation strip
    • Jiangyin Haida EPDM glass sealing strip
    • No need for glue inside and outside, with 3-way sealing design
    • Hollow screw glue injection process

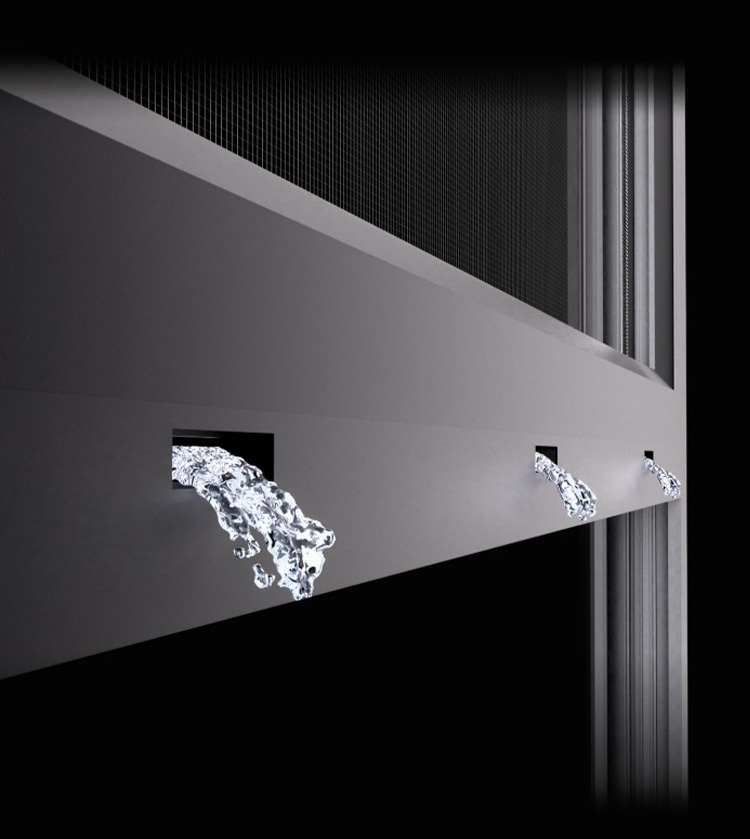

    • The design of the slope on the edge of the outdoor frame and fan provides smoother drainage

    Openthe Way

  • Outward Opening
  • Outward opening underhang
  • Underhang

    • Color Selection

    External color

    • Metallic Gray
    • Metal Coffee

    Internal color

    • Metallic Gray
    • Metal Coffee
    • Enamel White
    • Black
