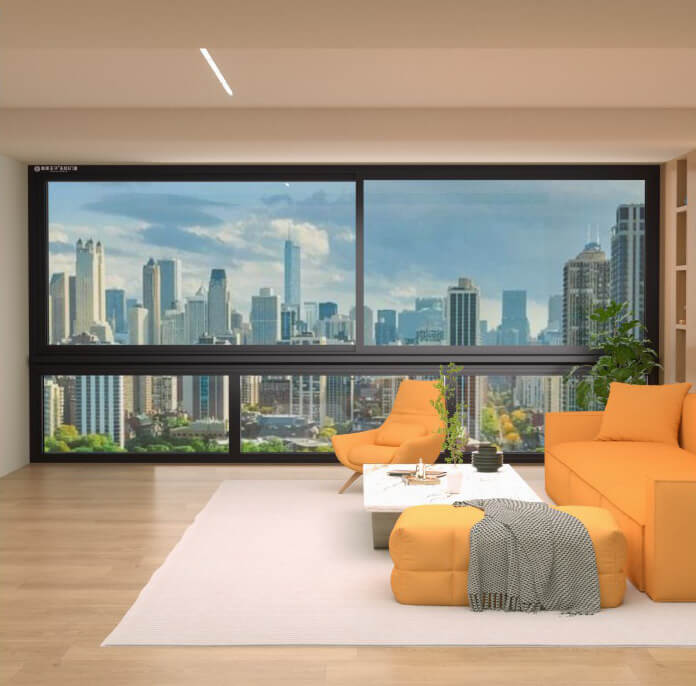

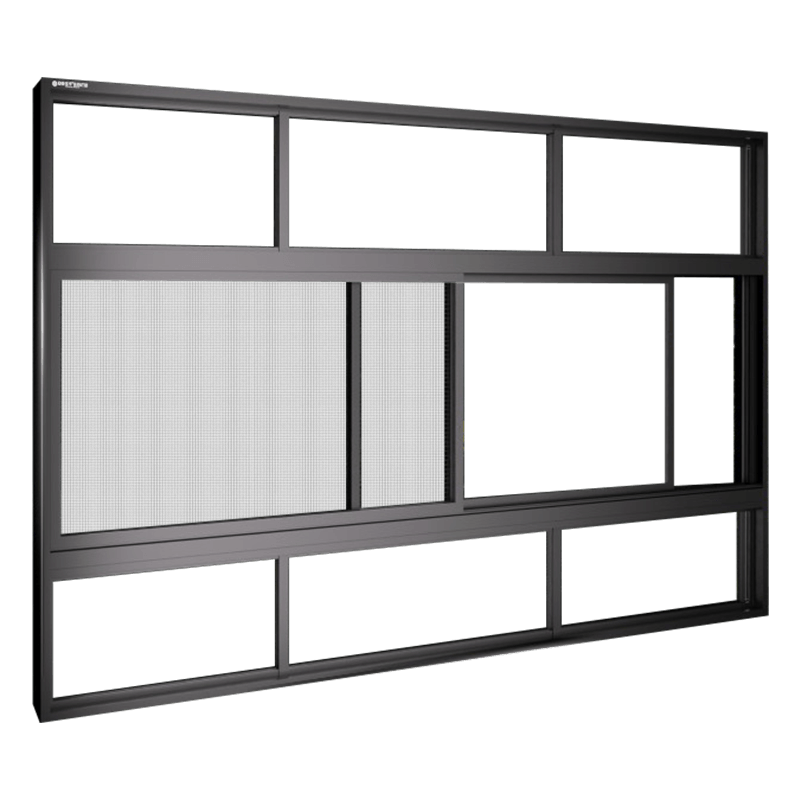

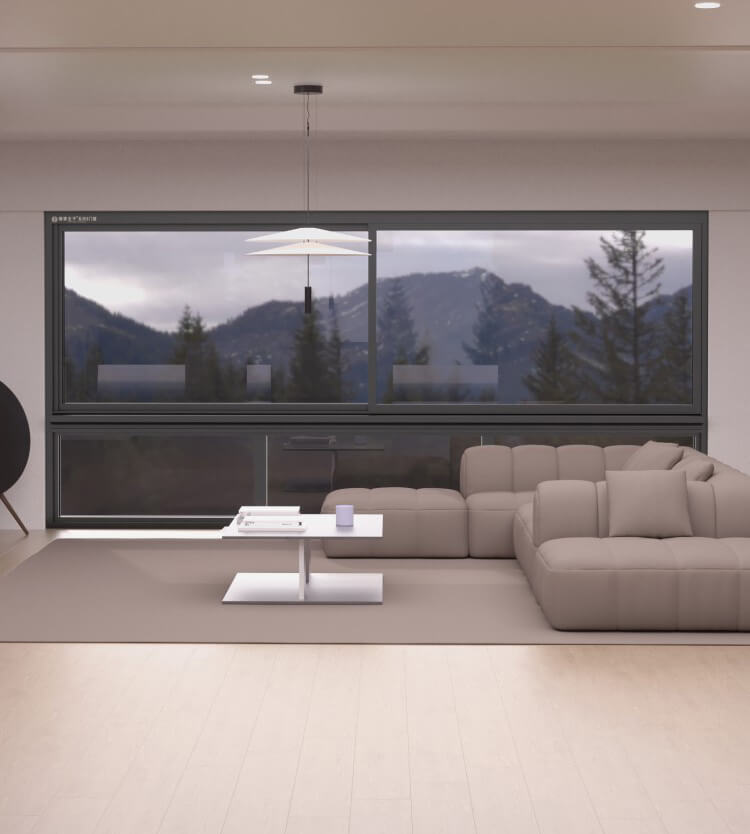

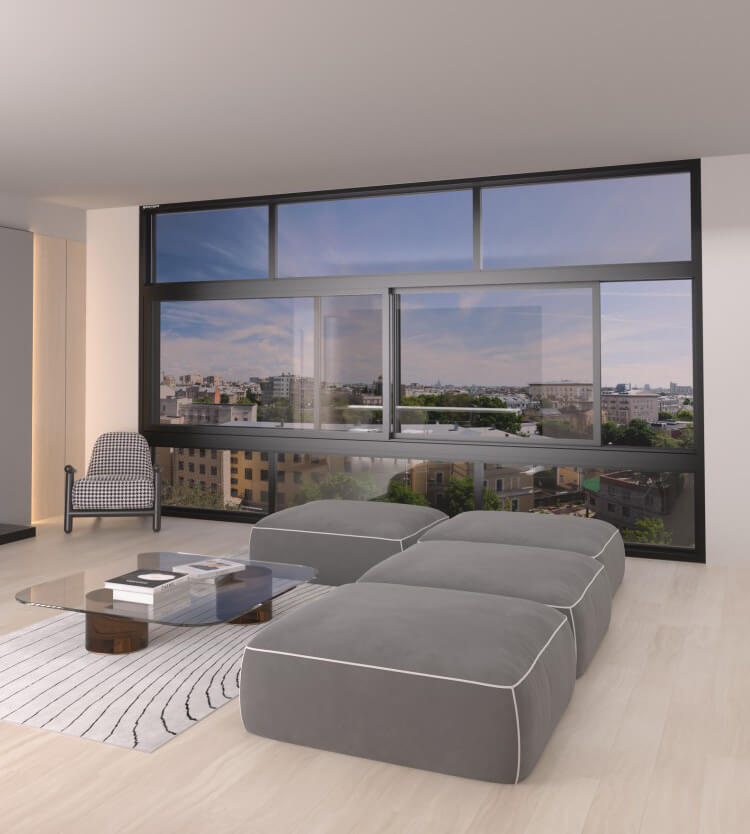

• AuraEdge 158 Thermal Break Suspended Sliding Window

    Product Parameters

    Glass Configuration
    5+20A+5 Argon-Filled Insulated Glass + Integrated Bent Aluminum Spacer Process
    Lower Rail Wall Thickness (mm)Sash Wall Thickness (mm)
    3.01.8
    Line Pressing Design‌Drainage System
    Small Square ProfileBridge-Type Concealed Drainage System

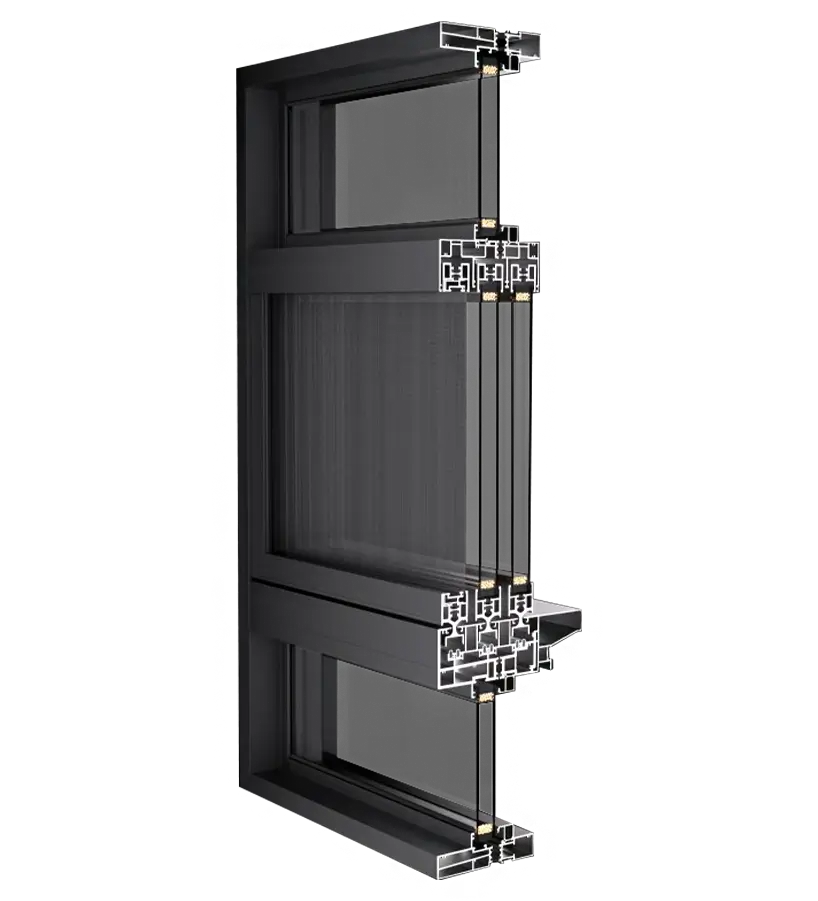

    Glass Panel Dimensions (mm) Cross-Sectional Dimensions (mm)
    32158
    Request a Quote
    Energy Saving Coefficient

    U≤2.0-2.5 (W/M2-K)

    Class 4

    Sound Insulation

    35-45(DB)

    Class 6

    Thermal Insulation
    Air Tightness

    Q≤0.5 (M3/M-H)

    Class 8

    Waterproofness

    700(PA)

    Class 5

    Wind Resistance

    5.0(KPA)

    Class 9

    Security / Safety

    • Product Features

    • Foshan Zhongjian Aluminum 6063 virgin aluminum
    • 3.0mm wall thickness, exceeding national standards
    • 5+20A+5 insulating glass for enhanced sound and heat insulation
    • Baogao double-point side locks, custom Yimai double-row silent pulleys
    • Standard nylon high-definition mesh
    • Small square molding

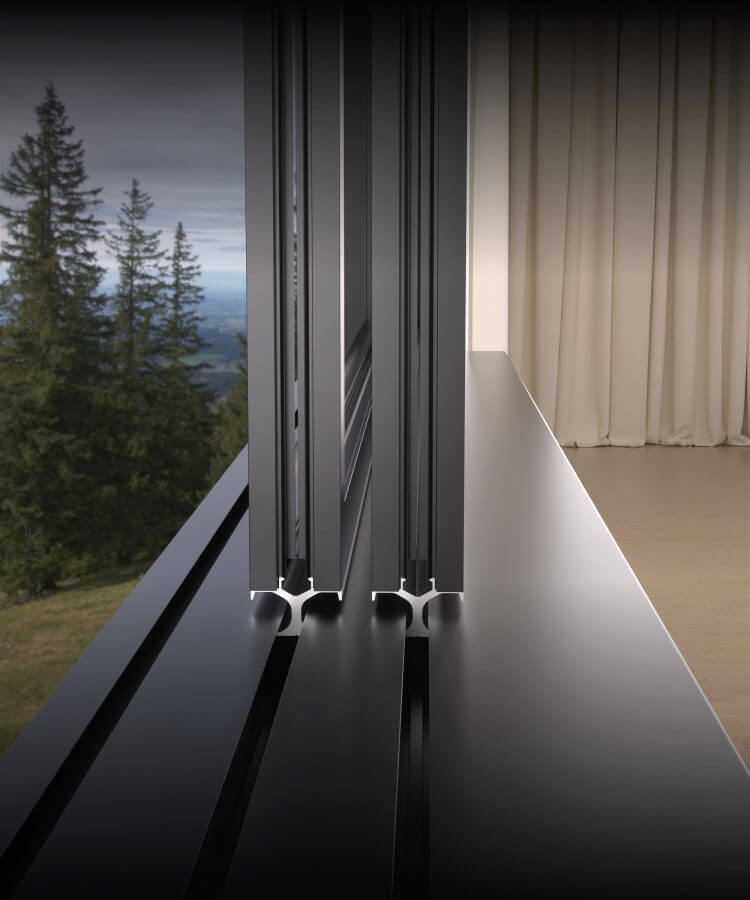

    • Six-track fully concealed floating lower rails, mesh screen for interior use
    • Hidden track design, simple and beautiful, easier to clean

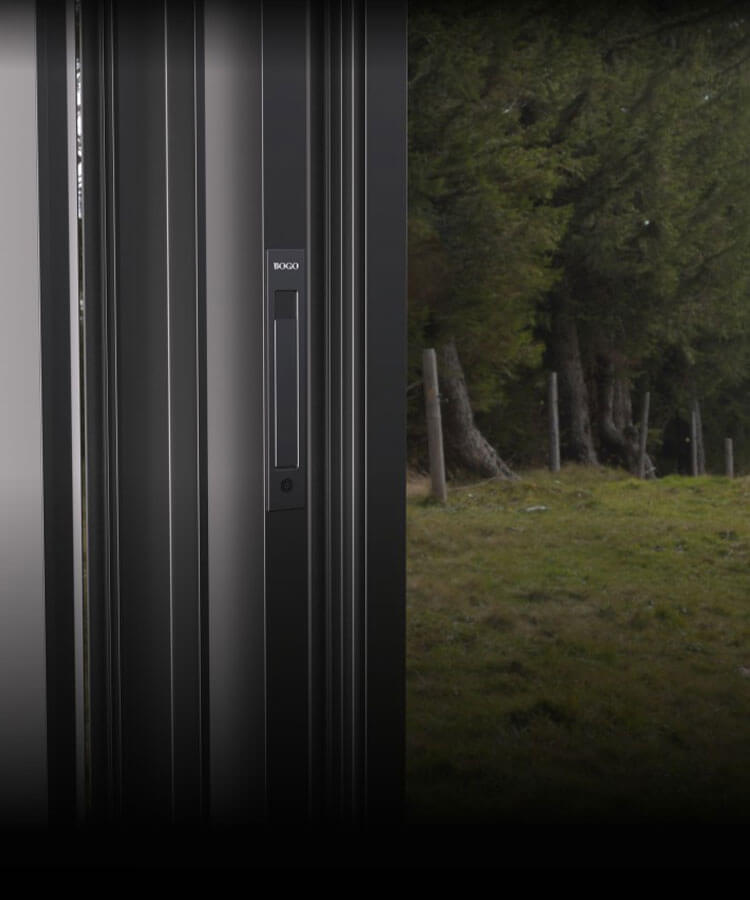

    • Baogao double-point side lock, comfortable texture, automatic lock

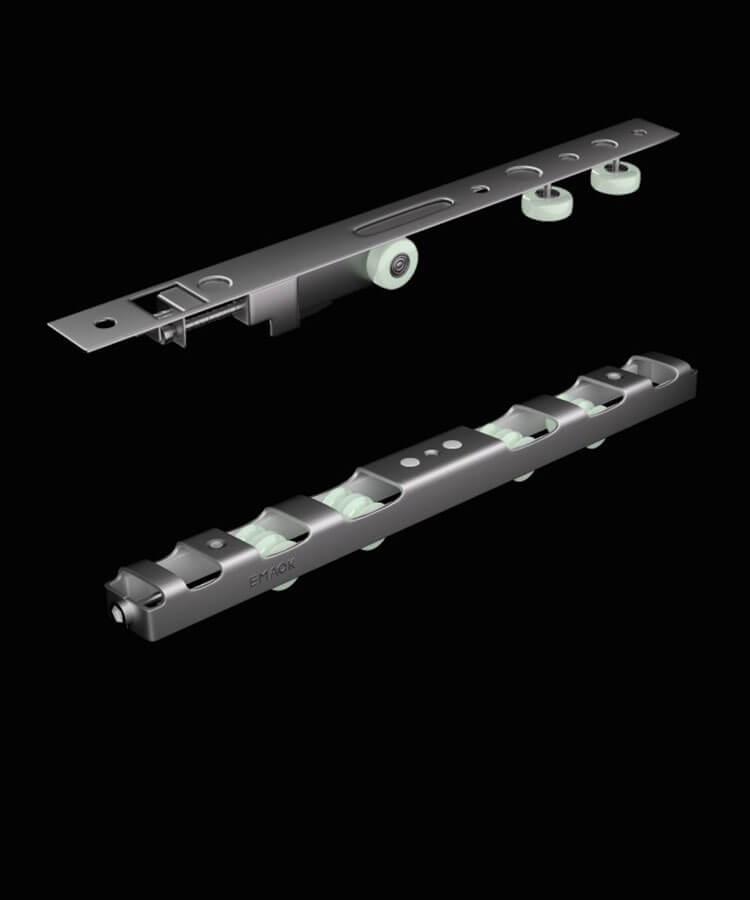

    • Customized Yimai double row, silent pulley, high load-bearing without shaking, smooth push and pull

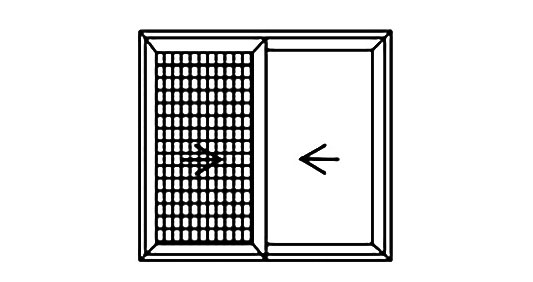

    Openthe Way

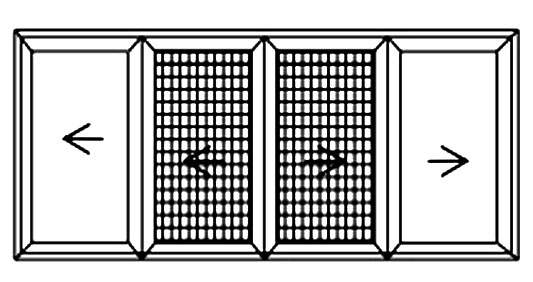

    • 4 Glass Panels + 2 Screen Panels
    • 2 Glass Panels + 1 Screen Panels

    Color Selection

    External color

    • Space Gray

    Internal color

    • Enamel White
    • Space Gray
