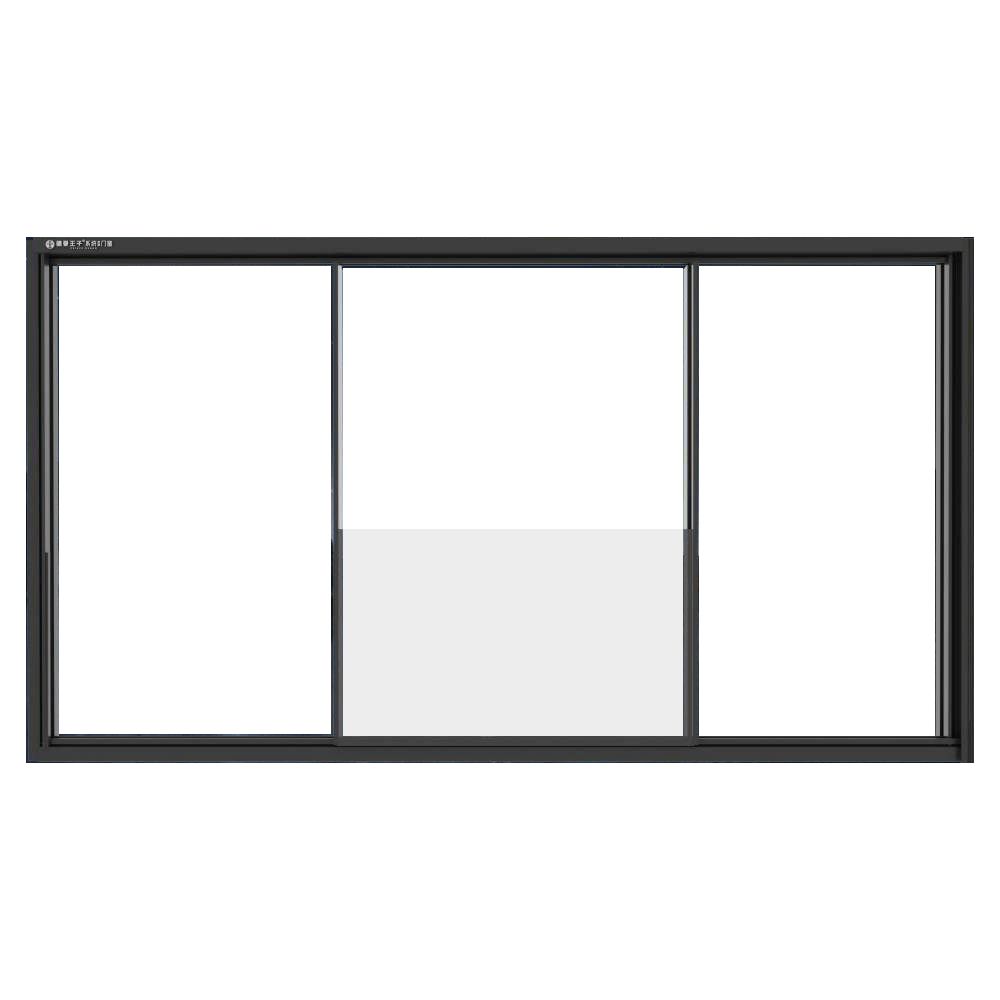

• AuraPanorama 150 Thermal Break Sliding Floor-to-Ceiling Window

    Product Parameters

    Glass Configuration
    5+27A+5 Argon-Filled Insulated Glass + Integrated Bent Aluminum Spacer Process
    Bottom Rail Wall Thickness (mm)Glass Panel Wall Thickness (mm)
    3.04.0
    Embossing Texture‌Drainage System
    –Recessed Floor Drain Drainage
    Glass Panel Dimensions (mm)Optional configuration
    19Energy saving Low-E glass coatings
    Request a Quote
    Energy Saving Coefficient

    U≤2.0-2.5 (W/M2-K)

    Class 4

    Sound Insulation

    35-45(DB)

    Class 6

    Thermal Insulation
    Air Tightness

    Q≤0.5 (M3/M-H)

    Class 8

    Waterproofness

    700(PA)

    Class 5

    Wind Resistance

    5.0(KPA)

    Class 9

    Security / Safety

    • Product Features

    • Foshan Zhongjian Aluminum 6063 virgin aluminum
    • Wall thickness 1.8mm-11.0mm, exceeding national standards
    • 5+27A+5 insulating glass for enhanced sound and heat insulation
    • Baogao custom hardware, three-dimensional pulleys
    • Glass sash wall thickness 4.0mm, glass sash size 19mm
    • Optional double-layer laminated glass guardrails and folding screens

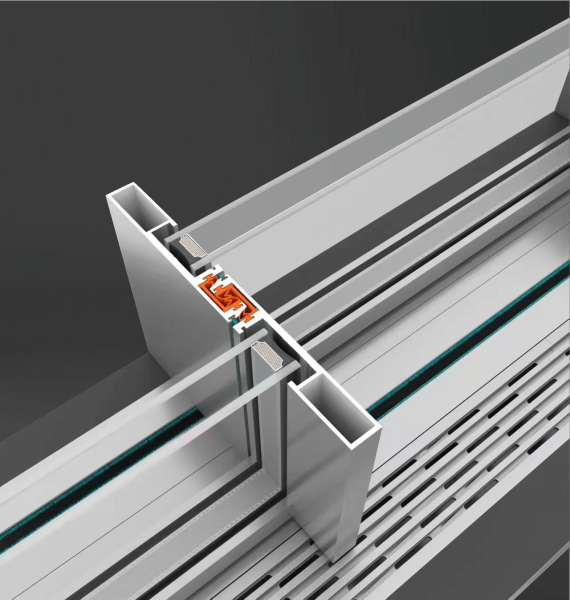

    • Concealed floor drain for smooth drainage
    • Double rows of custom stainless steel pulleys allow a single sash to support up to 1500kg.
    • A 19mm viewing area expands your horizons.

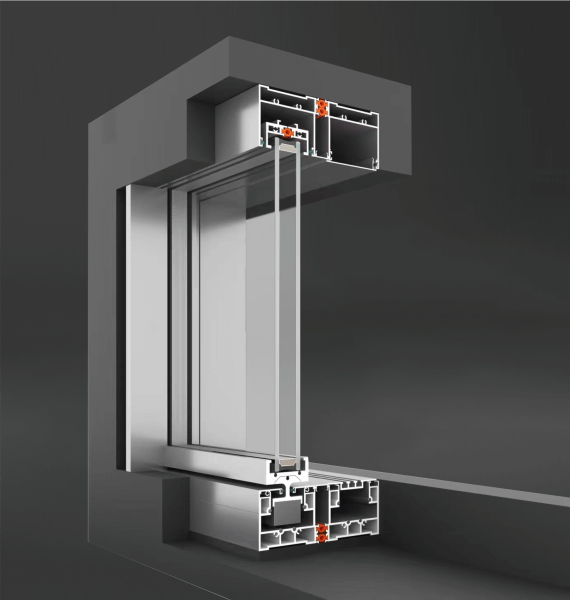

    • Linear embedded track design provides windproof, waterproof, and aesthetically pleasing performance.

    Open the Way

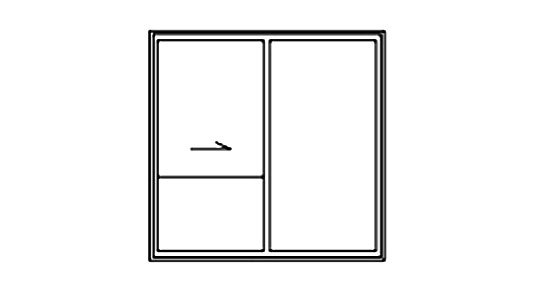

    • 1 Fixed + 1 Operable

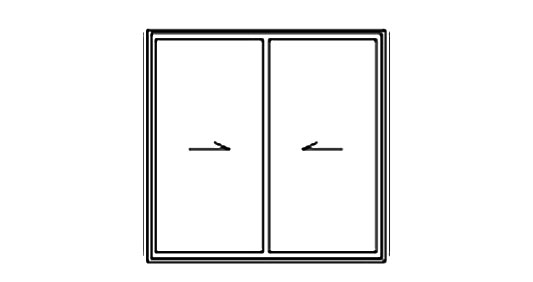

    • 2 Operable

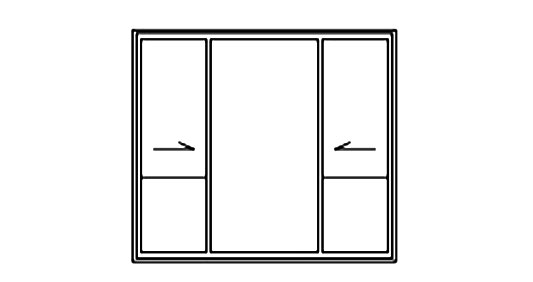

    • 1 Fixed + 2 Operable

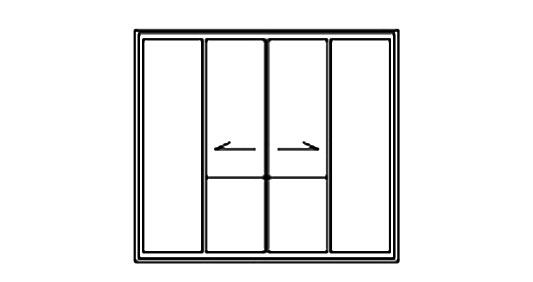

    • 2 Fixed + 2 Operable

    Color Selection

    External color

    • Galaxy Gray

    Internal color

    • Galaxy Gray

    Who We Serve

    For Developers, Contractors & Builders

    Reliable supply and bespoke solutions for large-scale projects.

    CONTACT US

    For Distributors & Trade Partners

    Partner with us for competitive trade pricing and regional support.

    CONTACT US

    For Designers & Specifiers

    Specification support, samples and bespoke options for designers.

    CONTACT US

    For Wholesalers & Retailers

    Flexible MOQ, replenishment solutions and retailer support.

    CONTACT US

    FAQs

    Minimum Order Quantity

    A 1.1 — The MOQ varies depending on the product category, specification, customization level, and finishing requirements. For standard aluminum alloy or PVC door & window models, the typical MOQ is 5–20 units per model. For highly customized specifications or special surface finishes, the MOQ may be increased appropriately to ensure production efficiency and cost optimization.

    A 1.2 — Yes, mixed orders are acceptable, provided that the selected models fall within the same product category and share compatible production processes. Please submit our product configuration list for assessment and confirmation.

    A 1.3 — Sample orders below the MOQ can be accommodated for evaluation purposes. Additional tooling or setup fees may apply, and unit pricing may differ from bulk order pricing.

    Wholesale Pricing Policy

    A 2.1 — Wholesale pricing is determined based on order volume, product specifications, material configuration, finishing requirements, and shipping terms. Upon receipt of a complete inquiry including model, size, quantity, and technical requirements, we will issue a formal quotation under EXW, FOB, CFR, or CIF terms.

    A 2.2 — Yes. Tiered pricing is available for large-volume orders, where unit cost decreases progressively with increased total quantity. Please provide your estimated purchase quantity for a tailored quotation.

    A 2.3 — Standard payment terms are 30% T/T deposit upon contract confirmation and 70% balance before shipment, or irrevocable L/C at sight for applicable orders. Flexible credit arrangements may be considered for strategic long-term partners.

    Lead Time & Logistics Process

    A 3.1 — Lead time varies by product type, order volume, and customization requirements. For standard models with existing tooling, typical lead time is 3–4 weeks after deposit confirmation. Complex or fully customized projects may require 8–10 weeks or longer. The precise schedule will be stated in the Pro Forma Invoice (PI).

    A 3.2 — We provide complete export logistics coordination, including packing, documentation (CI, PL, COO, etc.), container booking, customs declaration at origin, and vessel arrangement according to agreed shipping terms. Tracking details including vessel name and ETA will be provided upon shipment.

    A 3.3 — In the event of shipping delay or damage, we will coordinate closely with contracted logistics providers and insurance parties, providing required documentation to support claims. Corrective actions or replacement solutions will be evaluated based on the incident assessment and insurance policy conditions.

    Dedicated Support & Consultation

    Rapid responses and customized solutions, with expert consultations for optimal door and window projects.

    Rigorous Quality Assurance

    Strict quality control through smart manufacturing, ensuring compliance with international standards.

    End-to-End Project Management

    Seamless coordination from precise measurement to installation guidance, ensuring perfect integration.

    Global Logistics Coordination

    Efficient worldwide shipping, accurate documentation, and secure delivery.
